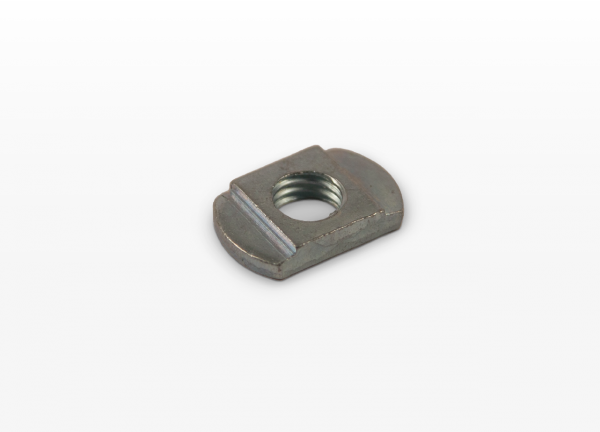

Channel nuts

for profiles rails with straigt flanges

Channel nuts
Length Width
M 6, 8, 10 24,0 mm 15,5 mm 100/1800
Material:
Steel, min. hardness 130 HB, galvanised as per DIN EN ISO 4042, further finishes on request

Mounting channel nuts DIN 3015

LIGHT SERIES:
For the securing of pipe and hose clamps in mounting rails M6, 1/4”, M8, 5/16”
HEAVY SERIES:
For the securing of pipe and hose clamps in mounting rails GMV10 + 12, M10, M12
Material:
Malleable cast iron, EN-GJMB-350-10 as per DIN EN 1562, bright, galvanised, nickel-plated as per DIN EN ISO 4042, on request stainless steel A2, A4, pickled, passivated

All of the dimensions stated above are approximate and may deviate both upwards and downwards.
